Best Zigbee Channel

Introduction

The 2.4 GHz frequency band is used by many wireless technologies including Wi-Fi, Bluetooth, Zigbee, and Thread. Because these technologies share the same radio spectrum, they can interfere with each other if channels are poorly chosen.

One of the most important characteristics of the 2.4 GHz band is the limited number of channels and their overlap. Choosing the wrong channel can lead to interference, reduced speeds, and unstable network performance.

Understanding how Wi-Fi channels work is especially important when selecting the correct channel for a Zigbee or Thread network.

How Wi-Fi 2.4 GHz Channels Work

In the 2.4 GHz band, up to 13 Wi-Fi channels are available in most regions (11 in some countries). Each channel is separated by about 5 MHz.

For example:

• Channel 1 — around 2412 MHz
• Channel 2 — around 2417 MHz
• Channel 3 — around 2422 MHz

However, Wi-Fi signals do not occupy a single frequency point. A typical Wi-Fi network uses a bandwidth of approximately 22 MHz.

Because of this wide bandwidth, a single Wi-Fi channel overlaps with several neighboring channels. For example, a network operating on channel 1 occupies frequencies roughly between 2401 and 2423 MHz.

As a result, most channels in the 2.4 GHz spectrum overlap and cannot be used simultaneously without causing interference.

Non-Overlapping Wi-Fi Channels

Due to channel width and spacing, only three channels do not overlap in the 2.4 GHz band:

• 1
• 6
• 11

These channels are typically recommended for Wi-Fi networks because they minimize interference between neighboring routers.

If a router uses channels such as 3 or 4, its signal overlaps with several nearby networks, which usually results in worse performance.

Zigbee and Thread Channels

In addition to Wi-Fi, the 2.4 GHz band is widely used by Zigbee and Thread networks.

These technologies are based on the IEEE 802.15.4 standard and use much narrower channels — approximately 2 MHz wide.

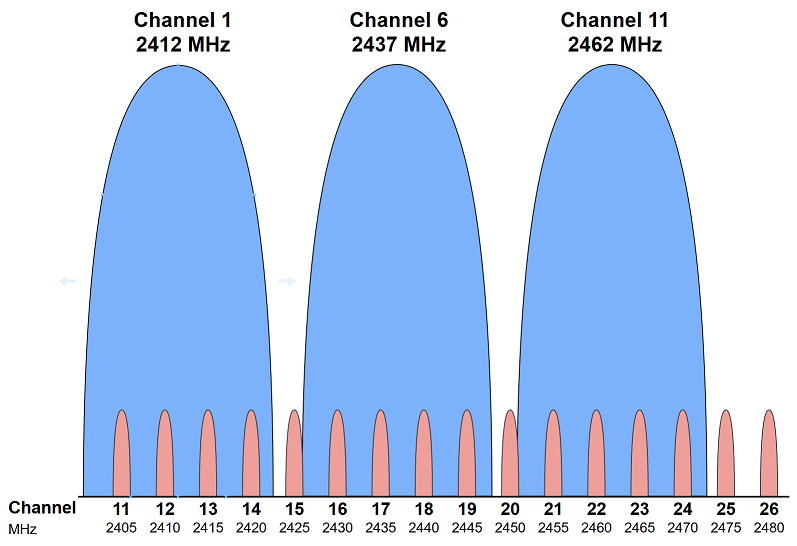

Zigbee and Thread use channels 11–26, which are positioned between Wi-Fi channels in the spectrum.

It is important to understand that Wi-Fi and Zigbee channel numbering do not correspond to each other. Even though both technologies operate within the same frequency band, their channel numbers refer to different frequency allocations.

For example:

• Wi-Fi channel 1 is centered around 2412 MHz
• Zigbee channel 11 is centered around 2405 MHz

Signal Power Differences

Another important factor is the difference in transmission power.

Wi-Fi signals are usually much stronger than Zigbee or Thread signals. Typical home Wi-Fi routers can transmit at power levels up to 100 mW, while many Zigbee devices operate at only 1–10 mW.

Because of this, a strong Wi-Fi signal can interfere with Zigbee communication if the devices are placed too close to each other.

For this reason it is often recommended to place the Zigbee coordinator at least one or two meters away from the Wi-Fi router. This helps reduce radio interference and improves network stability.

How to Choose the Best Zigbee Channel

Although a common channel configuration is:

Wi-Fi

• 1
• 6
• 11

Zigbee / Thread

• 15
• 20
• 25

The real situation in a building may differ. In some regions routers may use the 1 / 7 / 13 configuration.

Besides some routers support 40 MHz channel width in the 2.4 GHz band. This effectively combines two neighboring channels in order to increase data throughput.

For example, a network might occupy frequencies roughly between channels 5 and 13, covering a large portion of the spectrum.

In apartment buildings this configuration is usually not recommended because it creates strong interference for other networks and is itself very sensitive to congestion in the band.

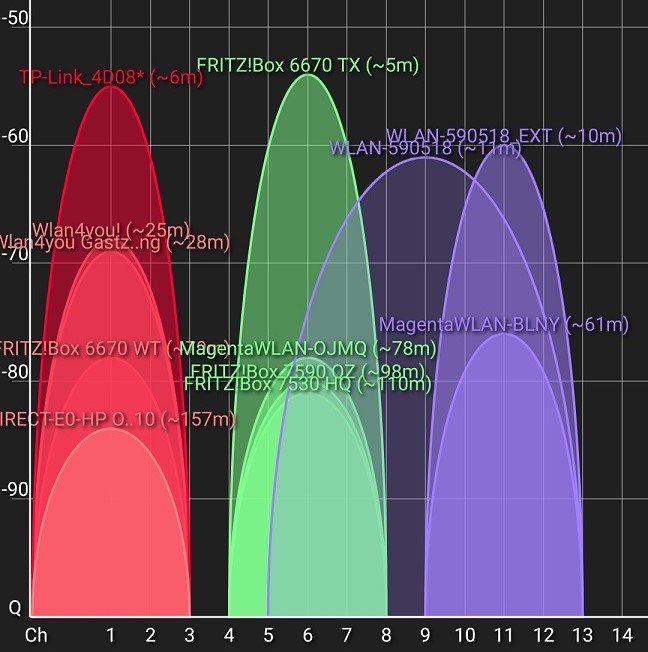

Nevertheless, such networks can sometimes be observed when analyzing the Wi-Fi spectrum. They appear as a wide signal covering a large part of the band.

For this reason it is recommended to analyze the radio environment before choosing a Zigbee or Thread channel.

This can be done using Wi-Fi analyzer apps on a smartphone, which show:

• channels used by nearby networks
• channel width
• signal strength

Such analysis helps select a Zigbee or Thread channel that lies between the most congested Wi-Fi frequencies.

Conclusion

Although the 2.4 GHz band contains many channels, most of them overlap due to the wide bandwidth of Wi-Fi signals. In practice only three independent Wi-Fi channels exist: 1, 6, and 11.

When using additional wireless technologies such as Zigbee and Thread, it is important to consider how channels are positioned in the spectrum and select them in a way that minimizes interference.

Analyzing channel usage and placing devices properly can significantly improve the stability of wireless networks.
